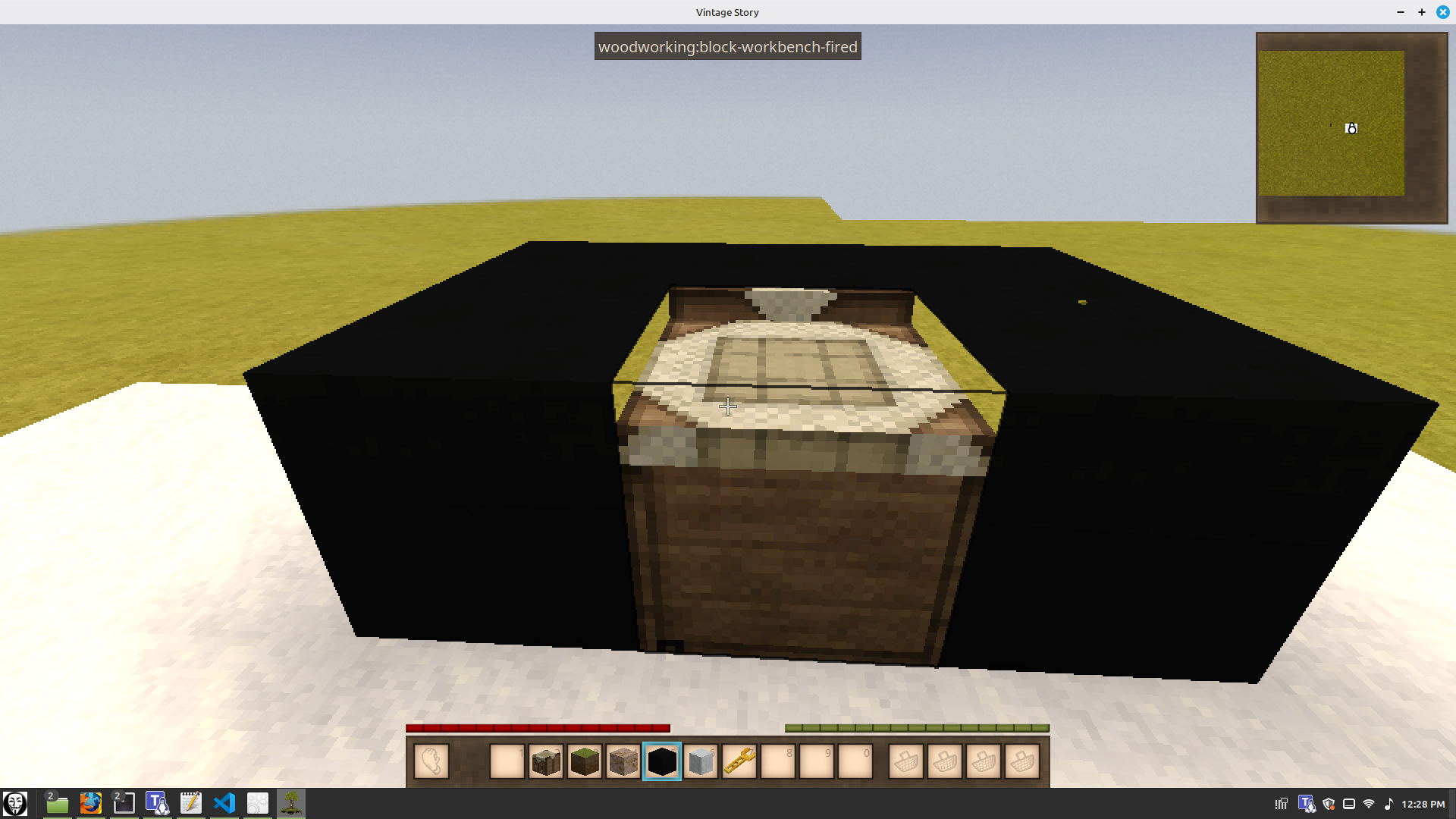

Micah Holmes Posted November 26, 2025 Report Posted November 26, 2025 Working on my first VS shape. I got everything working kind of ..... Having a issue where I cant rotate my block and its bleeding through on sides. Not sure how to fix this issue Block code: { code: "workbench", class: "Block", maxstacksize: 64, variantgroups: [ { code:"type", states: ["fired"] }, ], attributes: { mapColorCode: "settlement" }, shape: { base: "workbench" }, //drawtype: "Cube", blockmaterial: "Soil", creativeinventory: { "general": ["*-fired"], "decorative": ["*-fired"] }, replaceable: 700, resistance: 3, lightAbsorption: 99, // Must declare textures so they get added to the block texture atlas textures: { "back": { base: "game:block/wood/workbench/back" }, "sideleft": { base: "game:block/wood/workbench/left" }, "sideright": { base: "game:block/wood/workbench/right" }, "bottom": { base: "game:block/wood/workbench/bottom" }, "top": { base: "game:block/wood/workbench/top" }, "fdoor": { base: "game:block/wood/workbench/bottom" } }, drops: [ { type: "block", code: "workbench-fired", quantity: { avg: 0.85, var: 0 } } ], sounds: { place: "game:block/dirt", break: "game:block/dirt", hit: "game:block/dirt" }, fertility: 3, heldTpIdleAnimation: "holdbothhandslarge", heldRightReadyAnimation: "heldblockready", heldTpUseAnimation: "twohandplaceblock", tpHandTransform: { translation: { x: -1.23, y: -0.91, z: -0.8 }, rotation: { x: -2, y: 25, z: -78 }, scale: 0.4 } } Not a finalized version of the block code just a placeholder until i get it all adjusted. shape code: { "editor": { "allAngles": false, "entityTextureMode": false }, "textureWidth": 16, "textureHeight": 16, "textureSizes": { }, "textures": { }, "elements": [ { "name": "Back", "from": [ 0.0, 0.0, 0.0 ], "to": [ 16.0, 16.0, 1.0 ], "faces": { "north": { "texture": "#back", "uv": [ 0.0, 0.0, 16.0, 16.0 ] }, "east": { "texture": "#back", "uv": [ 0.0, 0.0, 1.0, 16.0 ] }, "south": { "texture": "#back", "uv": [ 0.0, 0.0, 16.0, 16.0 ] }, "west": { "texture": "#back", "uv": [ 0.0, 0.0, 1.0, 16.0 ] }, "up": { "texture": "#back", "uv": [ 0.0, 0.0, 16.0, 1.0 ] }, "down": { "texture": "#back", "uv": [ 0.0, 0.0, 16.0, 1.0 ] } } }, { "name": "side1", "from": [ 0.0, 0.0, 1.0 ], "to": [ 1.0, 12.0, 16.0 ], "rotationOrigin": [ 0.0, 0.0, 1.0 ], "faces": { "north": { "texture": "#sideleft", "uv": [ 0.0, 0.0, 1.0, 12.0 ] }, "east": { "texture": "#sideleft", "uv": [ 0.0, 0.0, 15.0, 12.0 ] }, "south": { "texture": "#sideleft", "uv": [ 0.0, 0.0, 1.0, 12.0 ] }, "west": { "texture": "#sideleft", "uv": [ 0.0, 0.0, 15.0, 12.0 ] }, "up": { "texture": "#sideleft", "uv": [ 0.0, 0.0, 1.0, 15.0 ] }, "down": { "texture": "#sideleft", "uv": [ 0.0, 0.0, 1.0, 15.0 ] } } }, { "name": "side2", "from": [ 15.0, 0.0, 1.0 ], "to": [ 16.0, 12.0, 16.0 ], "rotationOrigin": [ 15.0, 0.0, 1.0 ], "faces": { "north": { "texture": "#sideright", "uv": [ 0.0, 0.0, 1.0, 12.0 ] }, "east": { "texture": "#sideright", "uv": [ 0.0, 0.0, 15.0, 12.0 ] }, "south": { "texture": "#sideright", "uv": [ 0.0, 0.0, 1.0, 12.0 ] }, "west": { "texture": "#sideright", "uv": [ 0.0, 0.0, 15.0, 12.0 ] }, "up": { "texture": "#sideright", "uv": [ 0.0, 0.0, 1.0, 15.0 ] }, "down": { "texture": "#sideright", "uv": [ 0.0, 0.0, 1.0, 15.0 ] } } }, { "name": "bottom", "from": [ 1.0, 0.0, 1.0 ], "to": [ 15.0, 1.0, 16.0 ], "rotationOrigin": [ 1.0, 0.0, 1.0 ], "faces": { "north": { "texture": "#bottom", "uv": [ 0.0, 0.0, 10.0, 1.0 ], "autoUv": false }, "east": { "texture": "#bottom", "uv": [ 0.0, 0.0, 15.0, 1.0 ] }, "south": { "texture": "#bottom", "uv": [ 0.0, 0.0, 14.0, 1.0 ] }, "west": { "texture": "#bottom", "uv": [ 0.0, 0.0, 15.0, 1.0 ] }, "up": { "texture": "#bottom", "uv": [ 0.0, 0.0, 14.0, 15.0 ] }, "down": { "texture": "#bottom", "uv": [ 0.0, 0.0, 14.0, 15.0 ] } } }, { "name": "Top", "from": [ 0.0, 12.0, 1.0 ], "to": [ 16.0, 14.0, 16.0 ], "rotationOrigin": [ 0.0, 12.0, 1.0 ], "faces": { "north": { "texture": "#top", "uv": [ 1.0, 8.5, 17.0, 10.5 ] }, "east": { "texture": "#top", "uv": [ 0.5, 10.5, 15.5, 12.5 ] }, "south": { "texture": "#top", "uv": [ 0.0, 3.5, 16.0, 5.5 ] }, "west": { "texture": "#top", "uv": [ 0.5, 4.5, 15.5, 6.5 ] }, "up": { "texture": "#top", "uv": [ 0.0, 0.0, 16.0, 15.0 ] }, "down": { "texture": "#top", "uv": [ 0.0, 0.5, 16.0, 15.5 ] } } }, { "name": "Door", "from": [ 1.0, 1.0, 14.0 ], "to": [ 15.0, 12.0, 16.0 ], "rotationOrigin": [ 1.0, 1.0, 14.0 ], "faces": { "north": { "texture": "#fdoor", "uv": [ 0.0, 0.0, 14.0, 11.0 ] }, "east": { "texture": "#fdoor", "uv": [ 5.5, 3.0, 7.5, 14.0 ] }, "south": { "texture": "#fdoor", "uv": [ 0.0, 2.0, 14.0, 13.0 ] }, "west": { "texture": "#fdoor", "uv": [ 2.5, 2.5, 4.5, 13.5 ] }, "up": { "texture": "#fdoor", "uv": [ 0.0, 0.0, 14.0, 2.0 ] }, "down": { "texture": "#fdoor", "uv": [ 0.0, 12.0, 14.0, 14.0 ] } } } ]}
The Insanity God Posted November 29, 2025 Report Posted November 29, 2025 It's bleeding through the sides because you didn't define `sidesolid` and `sideopaque` and you can't rotate it because you didn't add any logic for rotation... this is normally done either through a BlockEntity with custom logic for it or through variants (the latter means it creates a separate block for each orientation) So you'd end up with something like this: { "code": "workbench", "class": "Block", "maxstacksize": 64, "variantgroups": [ { "code": "type", "states": [ "fired" ] }, //Add the extra orientations { "code": "side", "loadFromProperties": "game:abstract/horizontalorientation" } ], //Add behavior to handle logic for selecting the correct orientation to place "behaviors": [ { "name": "HorizontalOrientable" } ], "attributes": { "mapColorCode": "settlement" }, "shape": { "base": "workbench", //Set orientation on shape for each orientation variant "rotateYByType": { "*-north": 180, "*-east": 90, "*-south": 0, "*-west": 270 } }, //drawtype: "Cube", "blockmaterial": "Soil", "creativeinventory": { "general": [ "*-fired-north" ], "decorative": [ "*-fired-north" ] }, "replaceable": 700, "resistance": 3, "lightAbsorption": 99, // Must declare textures so they get added to the block texture atlas "textures": { "back": { "base": "game:block/wood/workbench/back" }, "sideleft": { "base": "game:block/wood/workbench/left" }, "sideright": { "base": "game:block/wood/workbench/right" }, "bottom": { "base": "game:block/wood/workbench/bottom" }, "top": { "base": "game:block/wood/workbench/top" }, "fdoor": { "base": "game:block/wood/workbench/bottom" } }, "drops": [ { "type": "block", "code": "workbench-fired-north", "quantity": { "avg": 0.85, "var": 0 } } ], "sounds": { "place": "game:block/dirt", "break": "game:block/dirt", "hit": "game:block/dirt" }, //These should be defined to prevent it from assuming the sides are solid and thereby not render the sides of blocks next to it. (aka the bleeding through) "sidesolid": { "all": false }, "sideopaque": { "all": false }, "fertility": 3, "heldTpIdleAnimation": "holdbothhandslarge", "heldRightReadyAnimation": "heldblockready", "heldTpUseAnimation": "twohandplaceblock", "tpHandTransform": { "translation": { "x": -1.23, "y": -0.91, "z": -0.8 }, "rotation": { "x": -2, "y": 25, "z": -78 }, "scale": 0.4 } }
Micah Holmes Posted November 30, 2025 Author Report Posted November 30, 2025 (edited) @The Insanity God Thank you very much. i did a massive code update. Rotating with wrench not working but places in correct directions now. New code: { code: "workbench", behaviors: [{name: "HorizontalOrientable"}], variantgroups: [ { code:"side", loadFromProperties: "game:abstract/horizontalorientation" } ], creativeinventory: { "general": ["workbench-north"], "decorative": ["workbench-north"] }, shapeByType: { "*-north": { base: "workbench", rotateY:0 }, "*-east": { base: "workbench", rotateY:270 }, "*-south": { base: "workbench", rotateY:180 }, "*-west": { base: "workbench", rotateY:90 } }, replaceable: 500, resistance: 1.5, lightAbsorption: 99, sidesolid: { all: false }, sideopaque: { all: false }, textures: { "top": { base: "game:block/wood/workbench/top" }, "bottom": { base: "game:block/wood/workbench/bottom" }, "fdoor": { base: "game:block/wood/workbench/bottom" }, "back": { base: "game:block/wood/workbench/back" }, "sideleft": { base: "game:block/wood/workbench/left" }, "sideright": { base: "game:block/wood/workbench/right" } }, heldTpIdleAnimation: "holdbothhandslarge", heldRightReadyAnimation: "heldblockready", heldTpUseAnimation: "twohandplaceblock", tpHandTransform: { translation: { x: -1.23, y: -0.91, z: -0.8 }, rotation: { x: -2, y: 25, z: -78 }, scale: 0.4 } } Edited November 30, 2025 by Micah Holmes
The Insanity God Posted November 30, 2025 Report Posted November 30, 2025 (edited) If you want it to be rotatable with a wrench then you need to add the "WrenchOrientable" behavior: { code: "workbench", behaviors: [ {name: "HorizontalOrientable"}, { name: "WrenchOrientable", properties: { basecode: "yourmoddomain:workbench" } } ], variantgroups: [ { code:"side", loadFromProperties: "game:abstract/horizontalorientation" } ], creativeinventory: { "general": ["workbench-north"], "decorative": ["workbench-north"] }, shapeByType: { "*-north": { base: "workbench", rotateY:0 }, "*-east": { base: "workbench", rotateY:270 }, "*-south": { base: "workbench", rotateY:180 }, "*-west": { base: "workbench", rotateY:90 } }, replaceable: 500, resistance: 1.5, lightAbsorption: 99, sidesolid: { all: false }, sideopaque: { all: false }, textures: { "top": { base: "game:block/wood/workbench/top" }, "bottom": { base: "game:block/wood/workbench/bottom" }, "fdoor": { base: "game:block/wood/workbench/bottom" }, "back": { base: "game:block/wood/workbench/back" }, "sideleft": { base: "game:block/wood/workbench/left" }, "sideright": { base: "game:block/wood/workbench/right" } }, heldTpIdleAnimation: "holdbothhandslarge", heldRightReadyAnimation: "heldblockready", heldTpUseAnimation: "twohandplaceblock", tpHandTransform: { translation: { x: -1.23, y: -0.91, z: -0.8 }, rotation: { x: -2, y: 25, z: -78 }, scale: 0.4 } } note: the content of "basecode" doesn't actually matter it just needs to be unique. (the game uses it as a key/identifier to group the blocks by) Edited November 30, 2025 by The Insanity God

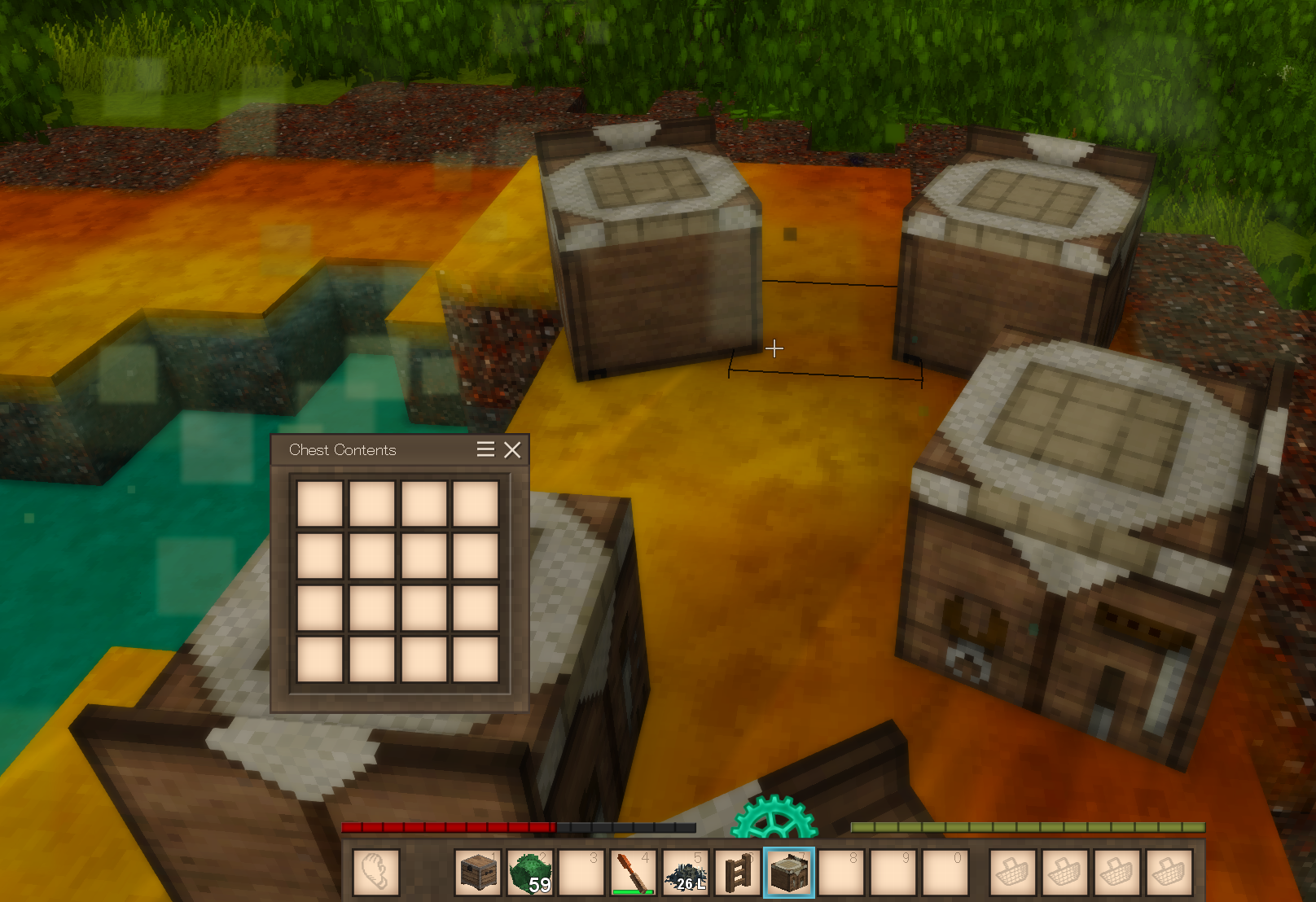

Micah Holmes Posted November 30, 2025 Author Report Posted November 30, 2025 Not to worried about wrench now that i got position working ish. I'll circle back to it later. I added storage to this block but having issues getting textures to work now. code: { code: "workbench", class: "BlockGenericTypedContainer", entityclass: "GenericTypedContainer", behaviors: [{name: "HorizontalOrientable"}], variantgroups: [ { code:"side", loadFromProperties: "game:abstract/horizontalorientation" } ], creativeinventory: { "general": ["workbench-north"], "decorative": ["workbench-north"] }, textures: { "top": { base: "game:block/wood/workbench/top" }, "bottom": { base: "game:block/wood/workbench/bottom" }, "fdoor": { base: "game:block/wood/workbench/bottom" }, "back": { base: "game:block/wood/workbench/back" }, "sideleft": { base: "game:block/wood/workbench/left" }, "sideright": { base: "game:block/wood/workbench/right" } }, attributes: { inventoryClassName: "chest", defaultType: "normal-generic", types: ["normal-generic"], handbook: { groupBy: ["workbench-*"] }, rotatatableInterval: { "normal-generic": "22.5degnot45deg" }, storageType: { "normal-generic": 189 }, retrieveOnly: { "normal-generic": false }, shape: { "normal-generic": "workbench" },//does not load textures but places correctly and rotates correctly //shape: { base: "workbench" },//loads textures but does not rotate or place correctly typedOpenSound: { "normal-generic": "game:sounds/block/largechestopen" }, typedCloseSound: { "normal-generic": "game:sounds/block/largechestclose" }, variantByGroup: "side", variantByGroupInventory: null }, behaviors: [ { name: "Lockable" }, { name: "Container"}, { name: "BoatableGenericTypedContainer" } ], shapeInventory: { base: "workbench", rotateY: 270 }, shapeByType: { "*-north": { base: "workbench", rotateY:0 }, "*-east": { base: "workbench", rotateY:270 }, "*-south": { base: "workbench", rotateY:180 }, "*-west": { base: "workbench", rotateY:90 } }, replaceable: 500, resistance: 1.5, lightAbsorption: 99, sidesolid: { all: false }, sideopaque: { all: false }, textures: { "top": { base: "game:block/wood/workbench/top" }, "bottom": { base: "game:block/wood/workbench/bottom" }, "fdoor": { base: "game:block/wood/workbench/bottom" }, "back": { base: "game:block/wood/workbench/back" }, "sideleft": { base: "game:block/wood/workbench/left" }, "sideright": { base: "game:block/wood/workbench/right" } }, heldTpIdleAnimation: "holdbothhandslarge", heldRightReadyAnimation: "heldblockready", heldTpUseAnimation: "twohandplaceblock", tpHandTransform: { translation: { x: -1.23, y: -0.91, z: -0.8 }, rotation: { x: -2, y: 25, z: -78 }, scale: 0.4 } } I was using chest as a my sample code but I might switch over to a storage vessel. I'm running into a issue I think with shape. Its a damned if you do damned if you don't situation. shape: { "normal-generic": "workbench" },//does not load textures but places correctly and rotates correctly //shape: { base: "workbench" },//loads textures but does not rotate or place correctly The normal generic I think is what I need to use based on chest script. But that breaks my texture settings and does not want to apply my textures. Not sure why. However, If I use the non generic shape it loads my textures but does not place correctly and I don't think storage works. Kind of a weird issue. Not sure how or why shape would have any effect on logic.
The Insanity God Posted December 1, 2025 Report Posted December 1, 2025 So remember how earlier I said "this is normally done either through a BlockEntity with custom logic for it or through variants" well the `GenericTypedContainer` would be one of the base game BlockEntities with rotation logic... meaning you now have 2 rotation systems trying to interfere with each other. I know the base game chest also has this but in their case it's to provide legacy support (you can only place down the `east` variant now and it fully uses the BlockEntity rotation) the reason why the textures don't work is because `GenericTypedContainer` is designed for creating variants through attributes instead of the standard variants system and to achieve this they altered the way textures are defined. { "code": "workbench", "class": "BlockGenericTypedContainer", "entityclass": "GenericTypedContainer", "behaviors": [ { "name": "Lockable" }, { "name": "Container" }, { "name": "BoatableGenericTypedContainer" } ], "creativeinventory": { "general": [ "workbench" ], "decorative": [ "workbench" ] }, "attributes": { "inventoryClassName": "chest", "defaultType": "normal-generic", "types": [ "normal-generic" ], "handbook": { "groupBy": [ "workbench" ] }, "rotatatableInterval": { "normal-generic": "22.5degnot45deg" }, "storageType": { "normal-generic": 189 }, "retrieveOnly": { "normal-generic": false }, "shape": { "normal-generic": "workbench" }, "typedOpenSound": { "normal-generic": "game:sounds/block/largechestopen" }, "typedCloseSound": { "normal-generic": "game:sounds/block/largechestclose" }, "variantByGroup": "side", "variantByGroupInventory": null }, "shapeInventory": { "base": "workbench", "rotateY": 270 }, //Texture identifiers are prefixed with the type "textures": { "normal-generic-top": { "base": "game:block/wood/workbench/top" }, "normal-generic-bottom": { "base": "game:block/wood/workbench/bottom" }, "normal-generic-fdoor": { "base": "game:block/wood/workbench/bottom" }, "normal-generic-back": { "base": "game:block/wood/workbench/back" }, "normal-generic-sideleft": { "base": "game:block/wood/workbench/left" }, "normal-generic-sideright": { "base": "game:block/wood/workbench/right" } }, "replaceable": 500, "resistance": 1.5, "lightAbsorption": 99, "sidesolid": { "all": false }, "sideopaque": { "all": false }, "heldTpIdleAnimation": "holdbothhandslarge", "heldRightReadyAnimation": "heldblockready", "heldTpUseAnimation": "twohandplaceblock", "tpHandTransform": { "translation": { "x": -1.23, "y": -0.91, "z": -0.8 }, "rotation": { "x": -2, "y": 25, "z": -78 }, "scale": 0.4 } }
Micah Holmes Posted December 1, 2025 Author Report Posted December 1, 2025 @The Insanity God thank you very much for helping. That seemed to work. I think I tried something similar before but could not get it to work. Thanks for helping me get it across the finish line.
